Iluminat / Arhitectural
Victoria 5The Victoria 5 is very flexible as it is completely modular in design.
It is very simple and reliable and can be fitted with all models of lamphouses for bulbs from 500W to 10000W.
Spools of 1800m. (6000 ft.) or 3000m. (10000 ft.) capacity can be mounted.
The Victoria 5 can be supplied with a very wide choice of options and accessories.
JBL
GT5-A402EJBL GT5-A402E

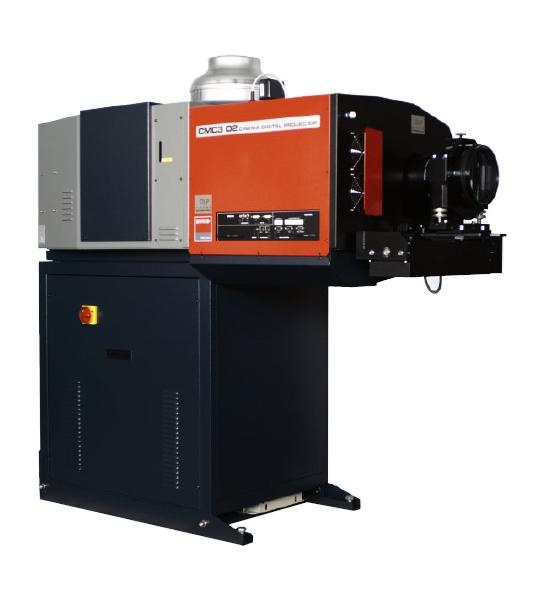

CMC3 D2 Digital ProjectorDigital projector with three 2K DLP TM Cinema chips
- Max resolution 2048x1080 - Contrast ratio up to 2000: 1
- Light output up to 23.000 ANSI Lumen*
- Totally sealed optics to insure stability over time
- Automatic mechanical dowser
- Zoom primary lenses of different focal lengths approved by DLP TM cinema
- optional anamorphic lens approved by DLP TM cinema with motorized and totally automatic holder or with manual lens holder
- optional videoscaler to show alternative contents
- linear or electronic rectifier to supply xenon bulbs up to 6000W
- touch screen control panel
- rack space at the back to mount the server
- fully self aligning xenon bulb system
- optional spherical auxiliary mirror to cover very large screens.
*measured in operation with 1.8 screen gain

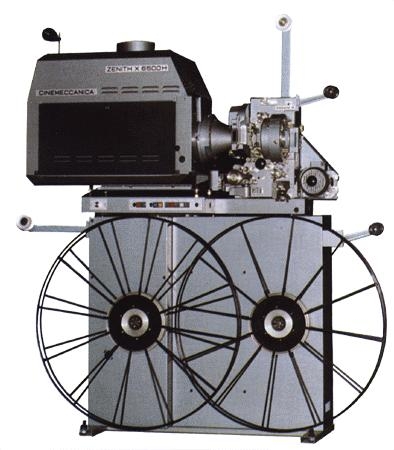

Victoria 5B/5000The family of Victoria 5B projectors includes the standard model, with a film capacity of 4000 metre (13,000 feet), and two models supplied upon request, one with 3000 metre (10,000 feet) film capacity for small projection rooms, and one with 5000 metre (16,500 feet) film capacity that can take two whole pictures of normal length.
On top of the Victoria 5 mechanism can be mounted an arm with a roller and no clutch as standard equipment, or, as an option, either one arm and clutch for 1800 m (6,000 feet) of film, or a vee with two auxiliary arms and clutches for 1800 m (6,000 feet) to show trailers and commercials during the rewind time of the main picture.
These projectors are supplied only with the long lamphouse beam.
The most commonly ordered option is the on machine variable speed rewind, with or without auto shut off.

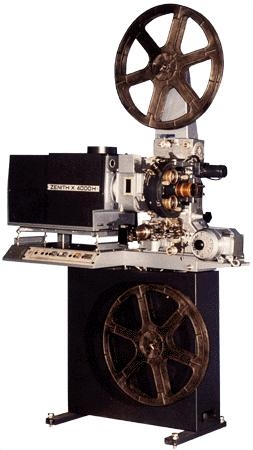

Victoria 8/TThe Victoria 8/T version has the new sheet metal pedestal, simple and strong.
The Victoria 8/T can have 1800 m. spools and upon request 3000 m. spools.
The Victoria 8/T can use any of the three Victoria 8 mechanisms: Victoria 8-R, Victoria 8-35, Victoria 8-35/70.

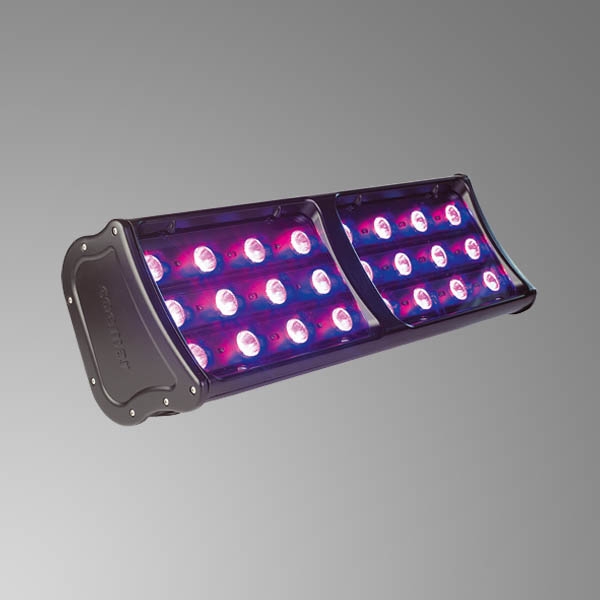

CycLite LedKEY FEATURES:
• Ideal digital substitute of the analog cyclorama light
• 75% to 82% energy saving compared to traditional technology at the same brightness
• Robust Aluminum, long lasting light source in long lasting body
• No fan, no maintenance, no noise
• ETL approved
• Internal/external gel frame for diffusion filters
• Can be transformed in IP65 at any time
• RGB + White (6500k) led in a single source (Patent Pending)
• Flicker free
• The vertical beam zoom from 26° to 40° can be also focused from +51° to -45° (Patent Pending)
SPECIFICATIONS:
• RGB+White color mixing
• 4 leds in 1 lens (Patent Pending);
• 2 cells, individually controllable of 48 leds each
• Proportional zoom 26° - 40° (vertical beam, ½ peak angle)
• The light beam is generated by three indipendent
optical planes (Exclusive Coemar Patent)
• Orientable beam from + 51° to - 45°; linear adjustment with digital positioning control: concentrate, symmetrical or asymmetrical
• Electronic dimmer
• Electronic strobe, synchronized, random, pulse effect
• Swing effects
• Flicker free, led frequency controlled by DMX (Patent Pending)
• Orientable standing feets
• Quick camlock clamps, on a modular guide with adjustable position
PHYSICAL SIZE:
• Length: 609 mm (24 in)
• Width: 211 mm (8.3 in)
• Height: 181 mm (7.1 in)
• Weight: 12 kg (26.4 lbs)
LIGHT SOURCE:
• 96 Luxeon leds, 1.2 W each, 24 Red, 24 Green, 24 Blue and 24 White (6500 Kelvin)
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 16
• Setting and addressing: led display or remotely
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz, 2m (6.6 ft) integral cable with PowerCon connector without power plug
• Power consumption: 1 A at 230 V, 2 A at 115 V
• DMX data in/out: 3 pin and 5 pin locking XLR

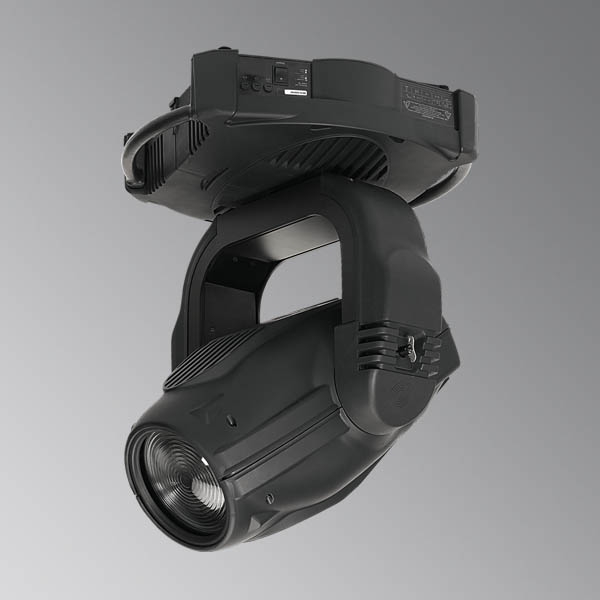

Infinity Wash XLKEY FEATURES:
• Superior brightness
• Narrow to wide zoom ranges (5°-84° total) in one unit
• Ground breaking new color mix system able to achieve CMY and RGB colors (CMY-s®, Patent Pending)
• Effects wheel for creating texture and aerial effects with wash light (Patent Pending)
• Electronically adjustable lamp power (700 W to 1450 W)
• Various lens options (zoom kit 6°-36° for extra brightness, PC lens for ACL type beam)
• Beam shaper rotating and indexing at 360° (Patent Pending)
SPECIFICATIONS:
• CMY-s® color mixing system with new saturation mode (Patent Pending)
• 5 colors + open
• 1 multicolor effect filter
• Proportional CTO filter
• 2 prismatic effects: moon flower, beam’o (Patent Pending)
• Beamshaper 360° (Patent Pending)
• Proportional zoom 5° - 84°
• Dimmer
• Mechanical and electronic strobe (zap effect), synchronized, random, pulse effect
• Modular design for easy maintenance and servicing
• Pan 538°, Tilt 252°, 16 bit
PHYSICAL SIZE:
• Length: 450 mm (17.7 in)
• Width: 450 mm (17.7 in)
• Height: 750 mm (29.5 in), head straight up
• Weight: 45 kg (99.2 lbs)
LAMP AND BALLAST:
• Type: Philips MSR Gold 1200 Fast Fit
• Color temperature: 6300 Kelvin
• Color rendering index: >80
• Average lamp life: 750 hours
• Socket: PGJX50
• Electronic ballast with Power Factor Correction
• Electronically adjustable lamp power (700 W to 1450 W), via DMX
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• DMX channels: 22
• Setting and addressing: LCD display or remotely
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 200-208/230/240 V, 50/60 Hz, 2m (6.6 ft) integral cable without power plug
• Power consumption: 8 A at 230 V
• DMX data in/out: 3 pin and 5 pin locking XLR
• RJ45 for upload and remote control
OPTIONS:
• PC Lens (# 9136)
• LD Zoom 5° - 36° kit (# 9136/1)
