Moteluri
BRKSensitivity (1W/1m) 109 dB
SPL Continuous 133 dB
SPL Peak139 dB
Highs 2" compression driver
Program Power 140 W
Impedance 8 ohm
Middle 10" loudspeaker
Program Power 600W
Impedance 8 Ohms
Lows 2 x 15" loudspeaker
Program Power 2000W
Impedance 4 Ohms
Frequency response ( -3dB) 50 Hz - 18 KHz
Finishing Painted
Dimensions 124 x 60.5 x 80 cm. (HxWxD)
JBL
GT5-A402EJBL GT5-A402E
RUTSubwoofer speaker system with two 18" woofer horn load.
The QUBE RUT is the companion subwoofer for the QUBE BRK 3 - way full range speaker system. Like the QUBE BRK, the RUT is a trapezoidal shaped cabinet with the same cabinet dimensions. Featuring horn-loaded subwoofer construction with 2 x 18” woofers it is capable of solid sub frequency response from 32 to 150Hz. The horn construction is a 7th order band pass design and due to its excellent transient response, it is able of delivering high definition sub frequencies with an extreme “tight” sound.
The dual 18” woofers can handle 2800w (2 ohm) and will produce sound pressure levels of 132 dB continuous and 137 dB peak. This touring specified enclosure is constructed in durable 13-layer 18mm (3/4”) Baltic birch plywood and is heavily braced for extra stabilization and resonance cancellation.
The RUT cabinet is equipped with heavy duty handles for easy rigging and stacking and is finished in durable polyurethane black paint. The size and sound of the QUBE RUT is carefully matched with the QUBE BRK in order to simplify stacking / rigging and enhance the overall capabilities of a complete BRK / RUT system
Configuration Way omnidirectional
Recommended amplifier Watts (RMS) 2800
Long term power Watts 1400
Short term power (IEC 268-5) Watts 5600
Nominal impedance ohm 2/4
Frequency response @ -6dB 32-150Hz
Low frequency woofer 2 X18”- 4" voice coil
Sensitivity (@1W/1m) dB 103
Maximum SPL dB 137
Dispersion Omnidirectional
Recommended external Crossover frequency Hz 100
Recommended external controller SP 12RUT plug in module
Input connectors 2 Speakon
Net dimensions (WxHxD) cm 124 x 60 x 80 (48.8”x 23.8”x 31.5”)
Net weight Kg 80 ( lbs 176 )

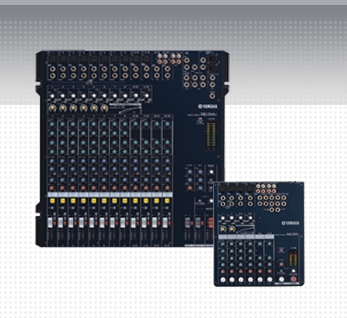

MG206C, MG166C, MG124C, MG102CWhether you have a mixing applications that involves only a few channels, or up to 32 inputs with substantial signal routing versatility, Yamaha's MG-series offers a console that will give you the capacity, control, and performance you deserve. All models are remarkably compact and lightweight for superior handling and portability, but absolutely no compromises have been made in terms of features, performance, or durability.
The MG mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format.
In either case these performance-packed mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.
10, 12, 16, or 20 inputs in remarkably lightweight, portable designs.
• Yamaha’s innovative one-knob compressor lets you easily dial in the amount of compression you need.
• High-quality Neutrik™ balanced XLR connectors on mono microphone/line channels and XLR-equipped stereo channels.
• Top-mounted input and output connectors for easy setup and re-patching.
• High-performance microphone preamplifiers with switchable phantom power.
• 3-band channel EQ and high-pass filters (sweepable midrange on the MG166C, MG206C).
• Smooth 60-millimeter faders & illuminated channel ON switches (MG124C, MG166C, MG206C).
• The MG102C has a single stereo bus (i.e. two mono buses), while all other models feature one or two additional stereo
group buses and outputs for convenient channel grouping.
• AUX sends with master send controls for convenient processing and monitoring.
• Return level controls for the AUX and STEREO buses.
• Bright meters for visual level monitoring.
• Optional microphone stand mount available for the MG102C.
• MG166C, MG206C rack mountable.

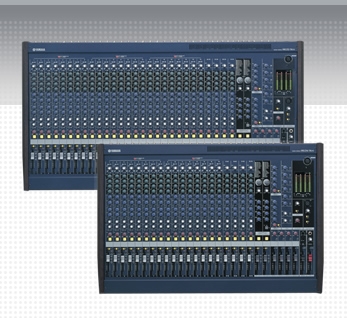

MG32/14FX, MG24/14FXThese 32-input and 24-input models are suitable for serious live sound applications in which a substantial number of sources must be handled efficiently. The MG32/14FX and MG24/14FX also feature dual Yamaha SPX effect processors built in, so you have everything you need for great sound right in the console.
A comprehensive complement of auxiliary and group buses provides extensive mixing and signal routing versatility.
16 mono inputs and 4 stereo inputs on the MG24/14FX; 24 mono inputs and 4 stereo inputs on the MG32/14FX.
• Top-quality microphone preamplifiers with switchable phantom power.
• Insert I/O patch points on mono input channels as well as the stereo and group buses.
• Mid-sweep 3-band mono channel EQ, 4-band stereo channel EQ.
• 14 buses for flexible signal routing: main stereo bus, four group buses, six auxiliary buses, and send buses for the two
internal effect processors.
• Ample sends and returns for monitoring and external effects.
• Dual Yamaha SPX digital signal processors provide a selection of 16 advanced digital effects.
• Reliable XLR output connectors.
• Variable LPF on mono output for convenient subwoofer setup.
• 12-segment level meters.
• Illuminated switches for high visibility.
• Talkback microphone input for convenient communication

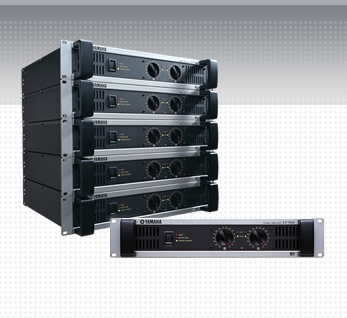

XP Series Five
Superb Amplifiers Optimized for Installation UseThe Yamaha XP series offers five power amplifier models that deliver unmatched quality and value for installations. These power amplifier feature high power, outstanding sound quality, extended reliability, and superior stability for a wide range of installed sound systems as well as portable live sound applications.
XP7000
700W + 700W (8 ohms, 20 Hz - 20 kHz), compatible with 70V lines (stereo)
XP5000
500W + 500W (8 ohms, 20 Hz - 20 kHz)
XP3500
350W + 350W (8 ohms, 20 Hz - 20 kHz), compatible with 100V lines (bridged)
XP2500
250W + 250W (8 ohms, 20 Hz - 20 kHz)
XP1000
110W + 110W (8 ohms, 20 Hz - 20 kHz)
Figures based on US120V specifications. See the specifications for details.
* Five models with power output ranging from 700W to 100W into stereo 8 ohms loads.
* Advanced circuit design and carefully selected parts deliver quality on a par with top-line models.
* Exclusive Yamaha EEEngine technology achieves unmatched efficiency.
* +4dBu/26dB/32dB gain switch for flexible level matching.
* Lightweight, compact 2U design for easy handling and installation.
* Monitor and Remote terminals for remote monitoring and control.
* Precision 1-dB/step detented attenuators.
* A selection of terminals and features for professional connectivity.
* Frequency-switchable high-pass filter for subsonic noise reduction or subwoofer matching.
* Comprehensive protection circuits, indicators and variable-speed cooling.
* Ideal matches for the DME64N/24N Digital Mixing Engines and Installation Series speakers.

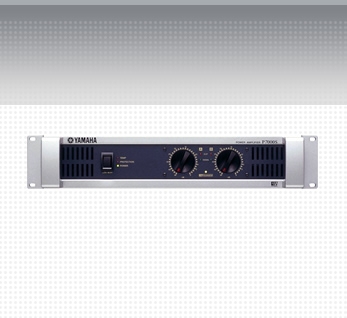

P SeriesRobust Power Output, Superior Audio Quality, and Efficient Operation
Yamaha's audio engineers have specifically designed the new P-Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with YS Processing (Yamaha Speaker Processing) to deliver a signal that will result in optimum system performance.
Power is plentiful, ranging from 3200 watts from the P7000S to 1300 watts from the P2500S in 4 ohms bridged mode. If you want the perfect power amplifier for pair of Club S115s with a 500-watt program rating, for example, the P5000S with 500-watts per channel into 8 ohms is the obvious choice.
Further matching precision is afforded by Yamaha's proprietary YS Processing circuit. Each P-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Neutrik Speakon, phone plug, and 5-way binding post outputs. Other features include Yamaha's exclusive EEEngine technology for high performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling fans.
