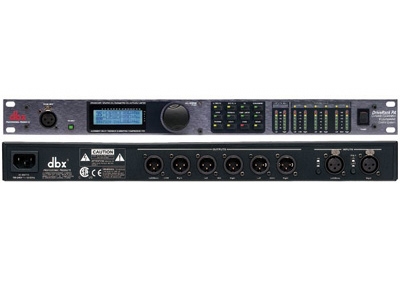

DriveRack PA

The DriveRack® PA continues the legacy of DriveRack® series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack® PA was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface.
This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic equalizer, industry-standard dbx® stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, and Peak Plus™ limiters (which are used to provide protection against speaker blowouts) and alignment delay.
These features combined with the Wizard setup system, represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.
* Stereo Feedback Elimination with 12 feedback notch filters
* Dual 28-band Graphic EQ
* Classic dbx® Compressor
* 120A Sub-harmonic Synthesizer
* 2x3, 2x4, 2x5, 2x6 Crossover Configurations
* Stereo Multi-band Parametric EQ
* Stereo Output Limiters
* Alignment Delay
* Pink Noise Generator
* Auto-EQ with 28-band RTA
* JBL® Speaker and Crown Power Amp Tunings with Setup Wizard
* 25 User Programs/25 Factory Programs
* 2 Channel XLR Input and 6 Channel XLR Output
* Front panel RTA-M XLR input with phantom power
* 24-Bit ADC/24-Bit DAC, >110 dB Dynamic Range
* Full Graphic LCD Display

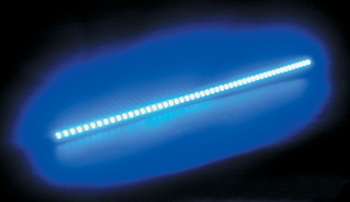

LineaLed Stick/Flexible
SPECIFICATIONS:
• RGB color mixing or single color
• Max 100 led per meter
• Led viewing angle 120°
PHYSICAL SIZE:
• Length Stick: 505 mm (19.9 in)
• Length Flexible: on request
• Width Stick: 12 mm (0.5 in)
• Width Flexible single color: 8.5 mm (0.4 in)
• Width Flexible multicolor: 15 mm (0.6 in)
• Height Stick: 3.5 mm (0.1 in)
• Height Flexible: 3.5 mm (0.1 in)
LIGHT SOURCE:
• Leds in single color (white 3200 K, 4700 K or 6500 K, green, blue, red, orange) or multicolor (Red, Green, and Blue)
CONTROL PROTOCOL AND PROGRAMMING:
• With Regoled
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• DC power: 24 V, quick connectors (linealed stick)
• Power consumption:
0.0056 A (white, green and blue) at 24 V, 0.1344 W each
0.01 A (red and orange) at 24 V, 0.24 W each
0.016 A (RGB) at 24 V, 0.384 W each
OPTIONS FOR LINEALED STICK:
• Connecting junction (# CON41)
• Connection cable 0.5 m (# CV11)
• Connection cable 1 m (# CV12)
• Connection cable 5 m (# CV13)

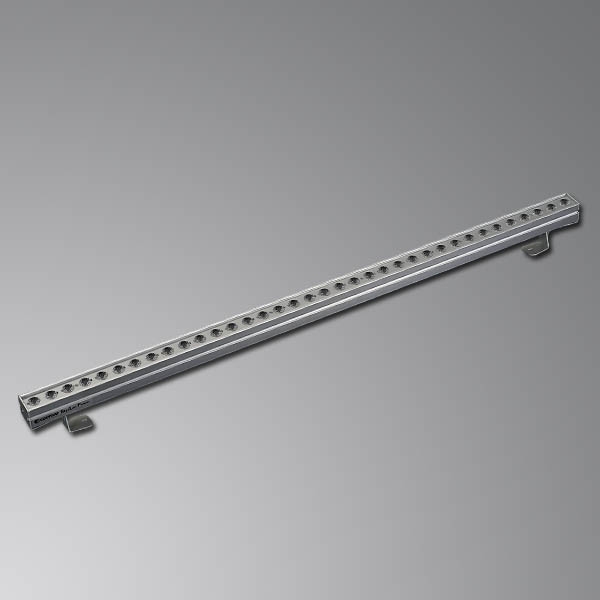

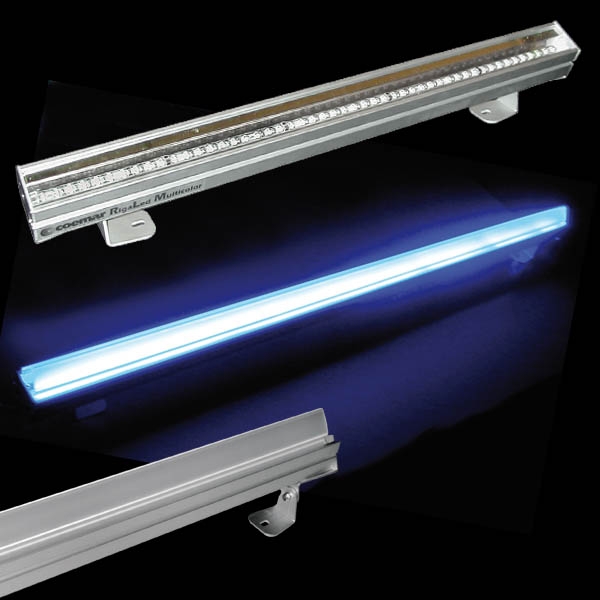

RigaLed Power

 SPECIFICATIONS:
• RGB color mixing
• Standard elliptical lens 12°x 24°
• Silver die-cast aluminum body
• Orientable yokes
PHYSICAL SIZE:
• Length RigaLed Power 18: 500 mm (19.7 in)
• Length RigaLed Power 36: 100 mm (39.4 in)
• Width: 40 mm (1.6 in)
• Height: 75 mm (2.9 in)
• Weight RigaLed Power 18: 0.9 kg (1.9 lbs)
• Weight RigaLed Power 36: 1.7 kg (3.7 lbs)
LIGHT SOURCE:
• RigaLed Power 18: 18 Luxeon leds, 1.2 W each, 6
Red, 6 Green, 6 Blue
• RigaLed Power 36: 36 Luxeon leds, 1.2 W each, 12
Red, 12 Green, 12 Blue
CONTROL PROTOCOL AND PROGRAMMING:
• With RegoBox Power (p. 112)
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• DC constant current power supply: 350 mA
• Power consumption RigaLed Power 18: 21.6 W
• Power consumption RigaLed Power 36: 43.2 W
• RJ45 connector
OPTIONS:
• 12° lens kit
• 30° lens kit
• 40° lens kit
