Teatru

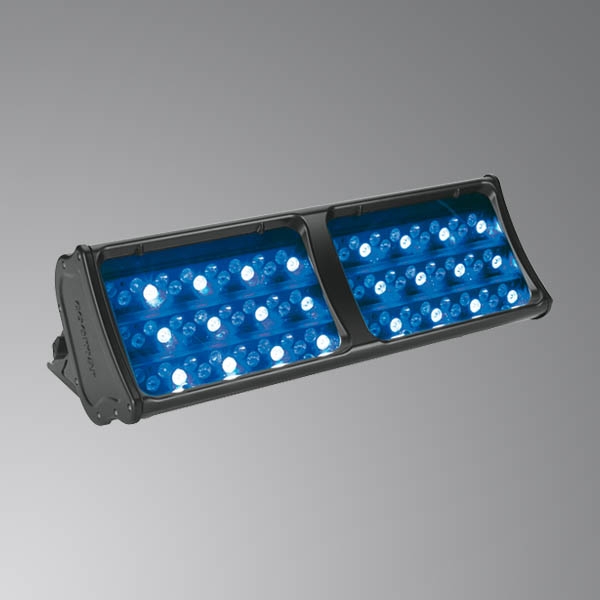

StageLite Led & StageLite Led FX

KEY FEATURES:
• A truly unique fixture which can be focused asymmetrically on a Cyc, used as a foot wash, up lighting, and an effects unit from the same mounting position.
• The vertical beam zoom from 11° to 34° can be also focused from +56° to -52° (Exclusive Coemar Patent)
• Asymmetric and symmetric beam in one single fixture (Patent Pending)
• Swing effect
• 75% to 82% energy saving compared to traditional technology at the same brightness
• Robust aluminum, long lasting light source in long lasting body
• No fan, no maintenance, no noise
• ETL approved
• Internal/external gel frame for diffusion filters
• Can be transformed in IP65 at any time
• Flicker free (Exclusive Coemar Patent)
• Pixel control 32 ch (FX only)

SPECIFICATIONS:
• RGB+White color mixing
• 2 cells, individually controllable of 48 leds each
• Proportional zoom 11° - 34° (vertical beam, ½ peak angle)
• The light beam is generated by three indipendent optical planes (Patent Pending)
• Orientable beam from + 56° to - 52°; linear adjustment with digital positioning control: concentrate, symmetrical or asymmetrical
• Electronic dimmer
• Electronic strobe, synchronized, random, pulse effect
• Swing effects
• Flicker free, led frequency controlled by DMX
• Orientable standing feets
• Quick camlock clamps, on a modular guide with adjustable position
• Intensity of each ½ line of leds can be individually controlled (FX only)
• Remote display function with DR 1 +

PHYSICAL SIZE:
• Length: 609 mm (24 in)
• Width: 211 mm (8.3 in)
• Height: 181 mm (7.1 in)
• Weight: 12 kg (26.4 lbs)

LIGHT SOURCE:
• 96 Luxeon leds, 1.2 W each, 24 Red, 24 Green, 24 Blue, and 24 White (6500 Kelvin)

CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 16
• Setting and addressing: led display or remotely
• Dmx channels: 12/16/20/32 (FX only)

ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz, 2m (6.6 ft) integral cable with PowerCon connector without power plug
• Power consumption: 1 A at 230 V, 2 A at 115 V
• DMX data in/out: 3 pin and 5 pin locking XLR

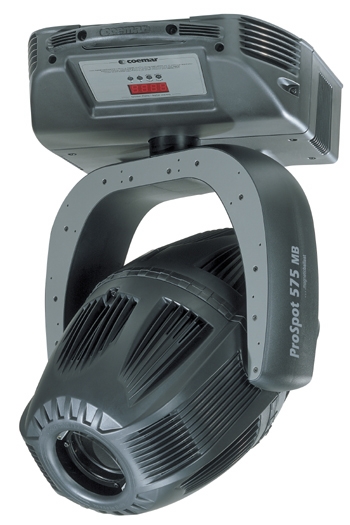

ProSpot 575 MB

SPECIFICATIONS:
• 6 colors + open
• 1 aerial wheel, 6 rotating gobos + open
• 1 break-up wheel, 6 gobos + open
• 1 rotating prism
• Focus
• Beam angle 22.5°
• Iris
• Dimmer
• Mechanical strobe, synchronized, random, pulse
effect
• Pan 538°, Tilt 252°, 16 bit
PHYSICAL SIZE:
• Length: 380 mm (15.0 in)
• Width: 495 mm (19.5 in)
• Height: 635 mm (25.0 in), head straight up
• Weight: 37 kg (81.6 lbs)
LAMP AND BALLAST:
• Type: Philips 575 MSR/2
• Color temperature: 7200 Kelvin
• Color rendering index: 80
• Average lamp life: 1000 hours
• Socket: GX 9.5
• Electromagnetic ballast
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• DMX channels: 22
• Setting and addressing: led display or remotely
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 200-208/230/240 V or 100-115/200-
208/230/240 V, 50/60 Hz,
2m (6.6 ft) integral cable without power plug
• Power consumption: 4 A at 230 V, 8 A at 115 V
• DMX data in/out: 3 pin locking XLR

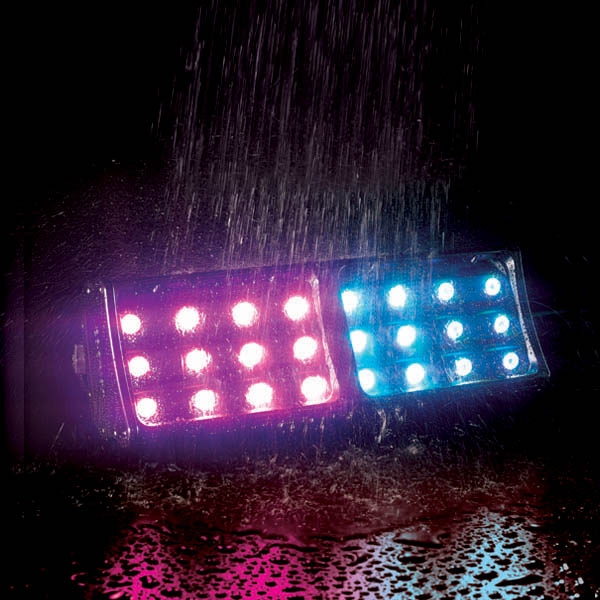

CycLite Led IP65

SPECIFICATIONS: SPECIFICATIONS
• RGB+White color mixing
• 4 leds in 1 lens (Patent Pending)
• Proportional zoom 26° - 40° (vertical beam, ½ peak angle)
• The light beam is generated by three indipendent optical planes (Patent Pending)
• Orientable beam from + 51° to - 45°; linear adjustmentwith manual positioning control: concentrate,symmetrical or asymmetrical
• Electronic dimmer
• Electronic strobe, synchronized, random, pulse effect
• Flicker free, led frequency controlled by DMX
• Orientable standing feet
• Quick camlock clamps, on a modular guide with adjustable position
• IP 65 weatherproof rating
PHYSICAL SIZE:
• Length: 308 mm (12.0 in)
• Width: 211 mm (8.3 in)
• Height: 181 mm (7.1 in)
• Weight: 6 kg (13.2 lbs)
LIGHT SOURCE: • 48 Luxeon leds, 1.2 W each, 12 Red, 12 Green, 12 Blue and 12 White (6500 Kelvin)
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 8
• Setting and addressing: led display or remotely
ELECTRICAL SPECIFICATIONS/CONNECTIONS: • AC power: 90-250 V, auto sensing, 50/60 Hz,
2m (6.6 ft) integral cable with PowerCon connector
without power plug
• Power consumption: 0.5 A at 230 V, 1 A at 115 V
• DMX data in/out: 3 pin locking XLR
