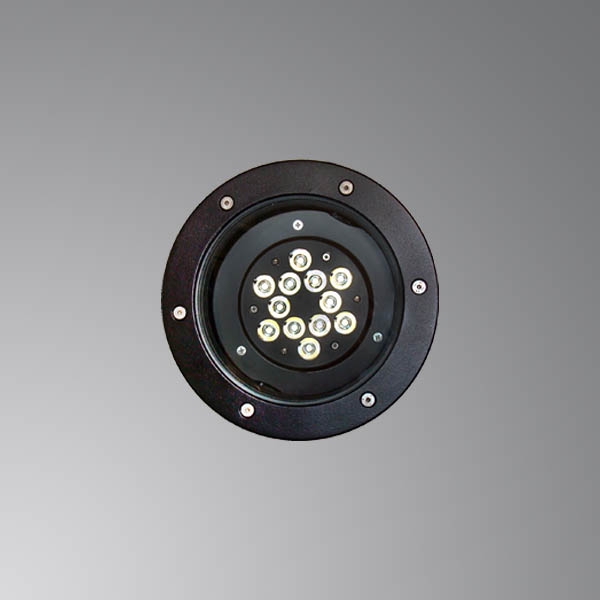

PinLite Led Inground

12 led RGB for an infinity colour generation with every beam projection angle.
Power supply 90/260 V and DMX control included in the die-cast body.
Orientable beam.
Natural white 4000°K and different optics (30°, elliptical 40°X13° and 50°) are available like accessories to the 12° beam standard version.
The full dry system guarantees IP68 protection, that assure the absence of condense inside the product. The excellent material used allows reaching 4000 Kg maximum carriage. The IP68 gel joints complete the accessories that make Pin Lite Led Inground a perfect outdoor up light.


KEY FEATURES:
• Optical tilt that allow to orient the beam.
• Full color, RGB, or natural white 4000°K versions
• Interchangeable optics
• Electronic strobe, synchronized, random, pulse effect
SPECIFICATIONS:
• RGB color mixing
• Tilt adjustable angle +/- 10°
• Standard lens 12°
• Interchangeable optics
• Electronic dimmer
• Controlled by DMX 512 mixer
• Electronic strobe, synchronized, random, pulse effect
• IP 68 Full Dry weatherproof rating
PHYSICAL SIZE:
• Ring outer diameter: 215 mm (6.0 in)
• Height: 325 mm (12.8 in)
• Weight: 3,6 kg (7.9 lbs)
• Weight resistance: 4000 kg (8.8 lbs)
LIGHT SOURCE:
• 12 Luxeon leds, 1.2 W each, 4 Red, 4 Green, 4 Blue
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 3/6
• Setting and addressing: binary dip switch or remotely with Dr1+
• 4 Internal automatic programs
• Master/slave function
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz,
• 2m (6.6 ft) power supply free cable included
• 2m (6.6 ft) DMX in and out free cable included
• Power consumption: 0.18 A at 230 V, 0.45 A at 115 V
• DMX data in/out: 3 pin locking XLR M/F
ACCESSORIES:
• 30° lens kit (# 9186)
• 40°x13° elliptical lens kit (# 9186/2)
• 50° lens kit (# 9186/3)
• Sleeve h 325 mm (# 8945030)
• anti-vandalism screw kit (# 8949002)
• IP68 gel joint (# 8917003)

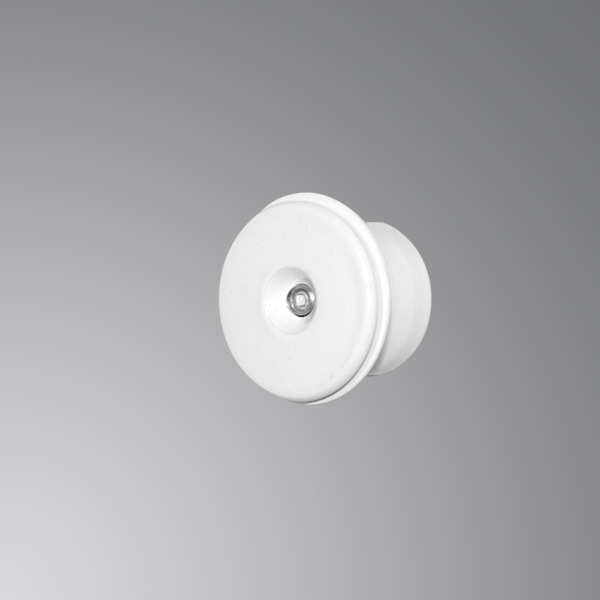

StarLed
SPECIFICATIONS:
• 1 led in single color
• Beam angle 90°
• Aluminum body, painted white
• Fixing clips
PHYSICAL SIZE:
• External diameter: 38 mm (1.5 in)
• Recessed diameter: 30 mm (1.2 in)
• Height without lens: 25.4 mm (1.0 in)
• Height: 23 mm (0.9 in)
• Weight: 25 g (0.06 lbs)
LIGHT SOURCE:
• Led: 1 Luxeon led, 1.2 W
CONTROL PROTOCOL AND PROGRAMMING:
• With RegoBox Power
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• DC constant current power supply: 350 mA
• Power consumption: 1.2 W

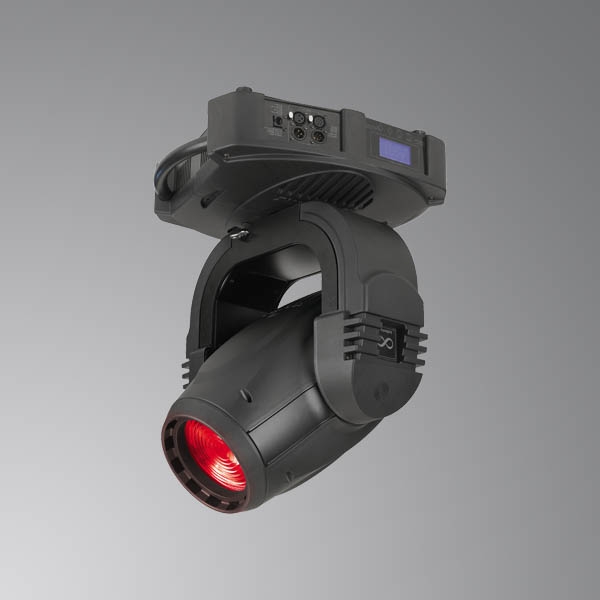

Infinity Wash S

 KEY FEATURES:
• Brighter than a 575 W fixture, in a package half the size
• Replace both 575 and 250 wash fixtures with one fully equipped moving light
• Space, weight, power saving
• Effect engine
• Amazing zoom range from 24° down to 4°
• Moon flower aerial effect (Patent Pending)
• Zoom tight as an ACL
• Silent operation for the quietest applications
SPECIFICATIONS:
• CMY color mixing
• 5 colors + open
• CTO filter
• Beam shaper 360° (Patent Pending)
• 2 Prismatic effects: moon flower, beam‘o (Patent Pending)
• Proportional zoom 4° - 24°
• Dimmer
• Mechanical and electronic strobe (zap effect), synchronized, random, pulse effect
• Modular design for easy maintenance and servicing
• Pan 540°, Tilt 284°, 16 bit
PHYSICAL SIZE:
• Length: 459 mm (18.1 in)
• Width: 377 mm (14.8 in)
• Height: 602 mm (23.7 in), head straight up
• Weight: 23 kg (50.7 lbs)
LAMP AND BALLAST:
• Type: Philips MSR Gold 300/2 FastFit
• Color temperature: 8000 Kelvin
• Color rendering index: 75
• Average lamp life: 750 hours
• Socket: PGJX28
• Electronic ballast with Power Factor Correction
CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• DMX channels: 18
• Setting and addressing: LCD display or remotely
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90 – 250 V, auto sensing, 50/60 Hz,
2m (6.6 ft) integral cable without power plug
• Power consumption: 2 A at 230 V, 4.4 A at 115 V
• DMX data in/out: 3 pin and 5 pin locking XLR
• RJ45 for upload and remote control
